The 77 TBO C features a wide 77cm cutting width and heavy duty front castors. Featuring a twin blade steel cutter deck with all the commercial features expected from a WEIBANG, including adjustable handles, front bumper and a WEIBANG XCV300 engine. The machine offers 4 in 1 functionality for work in any area.

• Model 77 TBO C
• Article Number WGMP145
• Cutting Width (cm/”) 77 / 30.5 Twin Blade Overlap
• Cutter Deck Material Steel
• Suitable Area up to 4500m²
• Drive PRO 3 Speed
• Drive Speed 3 / 3.5 / 4.5 km/h
• Blade Brake Clutch Blade Brake

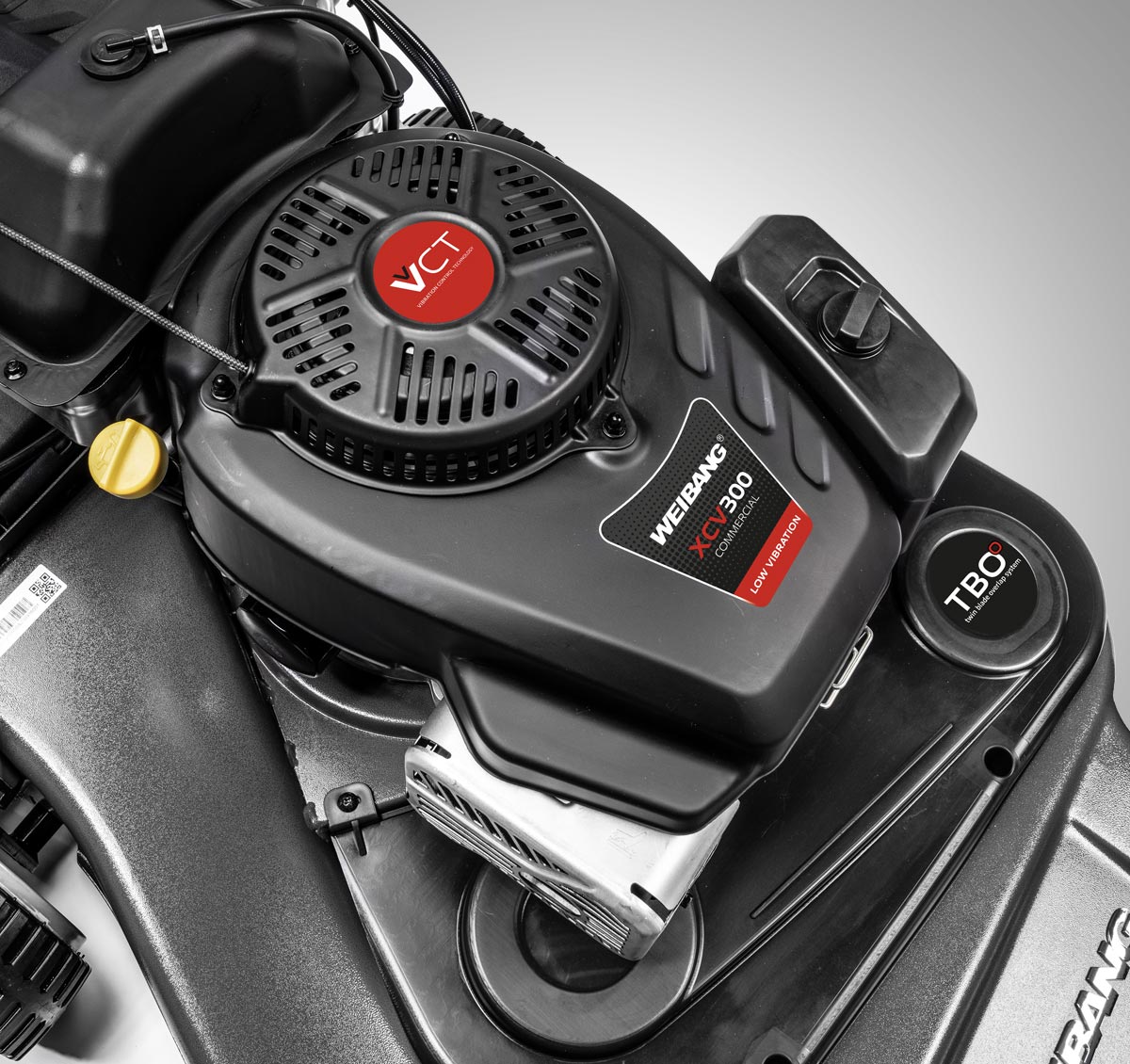

• Engine Make WEIBANG
• Engine Model XCV300
• Engine Displacement (cc) 300
• Engine Rated Power (kW/rpm) 5.6 / 3200
• Fuel Tank Capacity (l) 4.0
• Crank Protection CPS – Slip Washer
• Collector Capacity (l) 90 – Inc. Airflow Fabric
• Rear Discharge Yes
• Mulching Yes – High Performance Kit
• Side Discharge Yes
• Height Adjustment Type Independent Front & Rear
• Height Adjustment Positions 15
• Cutting Heights (mm) 17 – 129 (Collect & Side Discharge) / 29 – 129 (Mulching)
• Quick Release Handles Adjustable Ratchet
• Service Position Yes
• Storage / Transport Position Yes
• Front Bumper Yes
• Deck Protection Rolled Deck Lip
• Wheel Material (rim/tyre) Nylon / Polyurethane
• Weight (kg) 123.5
• Dimensions LxWxH (mm) 2114 x 820 x 1250
• Storage Dimensions LxWxH (mm) 1227 x 820 x 610
• Vibration Level (m/s²) 5.92
• Noise Level (dB(A)) 100
